Sick RLY3-OSSD200

Wrong part? Click here

$172.31

Learn more about our conditions.
Payment icons
RLY3-OSSD200
RLY3-OSSD200
RLY3-OSSD200
RLY3-OSSD200

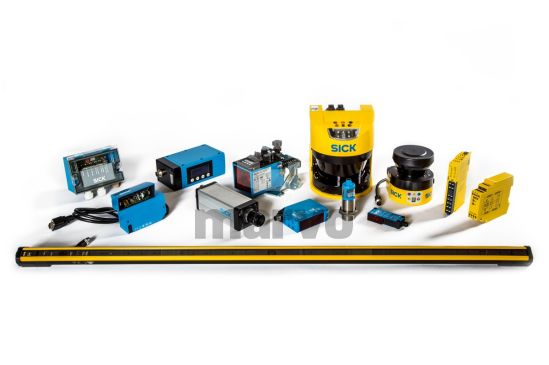

Image shown may not reflect the final product

Marvo Stock ID MV-QPN7
HS Code 85364110
SKU RLY3-OSSD200
Condition New unsealed
Warranty 12 months
Weight (lbs) 2.20
Length (inches) 12.60
Width (inches) 9.84
Height (inches) 9.84
EAN 4047084415197

Priority shipping

Lightning fast shipping if ordered within 00:00:00

Need it urgently?

Call: +1 847 900 9764

Quoting Marvo Stock ID: MV-QPN7

More about this product

Chevron

Specification & Description

View now
Chevron

Commonly Asked Questions

View now
Chevron

Customer Reviews

View now
Chevron

Similar Products

View now

Specification & Description

Specification Description
Part Number RLY3-OSSD200
Alternative Part Number RLY3OSSD200
Manufacturer Sick
Category Safety Relay
Description A safety relay designed to ensure the operational integrity of safety devices within machinery.
Supply Voltage 24 V DC (16.8 V to 30 V)
Power Consumption ≤ 2.5 W (DC)
Safety Inputs 2 inputs, with input voltage HIGH 24 V DC (11 V to 30 V), LOW 0 V DC (–3 V to 5 V)
Output Type Make contacts, forcibly guided
Switching Voltage 10 V AC to 230 V AC, 10 V DC to 230 V DC
Switching Current 10 mA to 6 A
Total Current 12 A
Mechanical Life 1 x 10^7 switching cycles
Response Time 10 ms
Output Notification 2 Push-Pull semiconductor outputs, short-circuit proof
Test Pulse Outputs 1
Commodity Code 853649
Dimensions Not specified
Weight 130 g
Mounting Mounting rail (IEC 60715)
Connection Type Spring terminals
Wire Cross-section Single wire (1×) 0.14 mm² to 1.5 mm²
Operating Temperature Range Not specified
Compliance ROHS, EMC, Machinery Directives

The Sick RLY3-OSSD200 Safety Relay is a robust and reliable component designed for industrial safety applications. This safety relay ensures the secure operation of machinery by monitoring safety devices and executing safe shutdown procedures when necessary. It operates with a supply voltage of 24 V DC and features two safety inputs and two enabling current paths with positively guided contacts, ensuring dependable operation and compliance with safety standards.

The RLY3-OSSD200 is engineered to handle switching voltages ranging from 10 V AC to 230 V AC, and 10 V DC to 230 V DC, with a switching current capacity of up to 6 A. Its compact dimensions (18 mm x 124.6 mm x 85.5 mm) make it suitable for installation in space-constrained environments, while its mechanical life of 1 x 10^7 switching cycles attests to its durability and long-term reliability.

This safety relay is also equipped with diagnostic outputs that provide real-time feedback on the operational status, enhancing the monitoring capabilities and facilitating maintenance procedures. With its compliance to overvoltage category III and an impulse withstand voltage of 6 kV, the RLY3-OSSD200 offers robust protection against voltage spikes, contributing to the overall safety and stability of your system.

Commonly Asked Questions

Is my order covered by a warranty?

Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.

Read more...

What payment methods do you accept?

We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.

Read more...

Is Marvo a credible parts supplier?

Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.

Read more...

Have steps been taken to ensure quality control?

Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.

Read more...

How do I create an account?

Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.

Read more...

Peace of mind with every purchase

Stars Dave Peavey

‘First time I ordered from here worked out good delivered as promised.’

Stars Dylan Johnson

‘Good experience.’

Stars Thomas E Hyde

‘Really good customer service.’

Learn more about Marvo


Our service to you

Stopwatch

Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.

Shield

No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.

Checkmark

Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.

Stars

Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.

Frequently Asked Questions

What is the primary function of this safety relay?

The primary function of the RLY3-OSSD200 safety relay is to monitor and control safety devices in industrial settings, ensuring safe operation and providing a means to interrupt power or signal in the event of a safety breach.

What type of power supply is required for this safety relay?

The safety relay requires a 24 V DC power supply, with a voltage range of 16.8 V to 30 V DC. It is designed to operate with PELV (Protective Extra Low Voltage) or SELV (Safety Extra Low Voltage) systems.

Can you describe the input characteristics of this safety relay?

The RLY3-OSSD200 has two safety inputs. Each input accepts a voltage of 24 V DC when high (ranging from 11 V to 30 V) and 0 V DC when low (ranging from -3 V to 5 V). The input current ranges from 4 mA to 6 mA.

What are the output specifications of this safety relay?

This safety relay features two release current paths with make contacts that are forcibly guided. The contacts are made of a silver alloy and are gold-plated. The switching voltage ranges from 10 V AC to 230 V AC and from 10 V DC to 230 V DC, with a switching current of 10 mA to 6 A.

What is the response time for the outputs on this safety relay?

The response time for the outputs on the RLY3-OSSD200 is 10 milliseconds.

What are the environmental operating conditions for this safety relay?

The safety relay operates within an ambient temperature range of -25 °C to +55 °C. It is designed with an IP20 rating, indicating protection against solid objects larger than 12.5 mm but not against water.

What certifications does this safety relay hold?

The RLY3-OSSD200 complies with several standards, including EN 60664-1 for insulation coordination and overvoltage category III, with a nominal impulse withstand voltage of 6 kV.

How is this safety relay mounted?

This safety relay is designed for mounting on a standard mounting rail according to IEC 60715.

What are the dimensions and weight of this safety relay?

The RLY3-OSSD200 safety relay measures 18 mm in width, 124.6 mm in height, and 85.5 mm in depth. It weighs approximately 130 grams.

What type of connections does this safety relay support?

The safety relay supports connections via spring terminals, suitable for various wire types and sizes as specified in its technical documentation.
