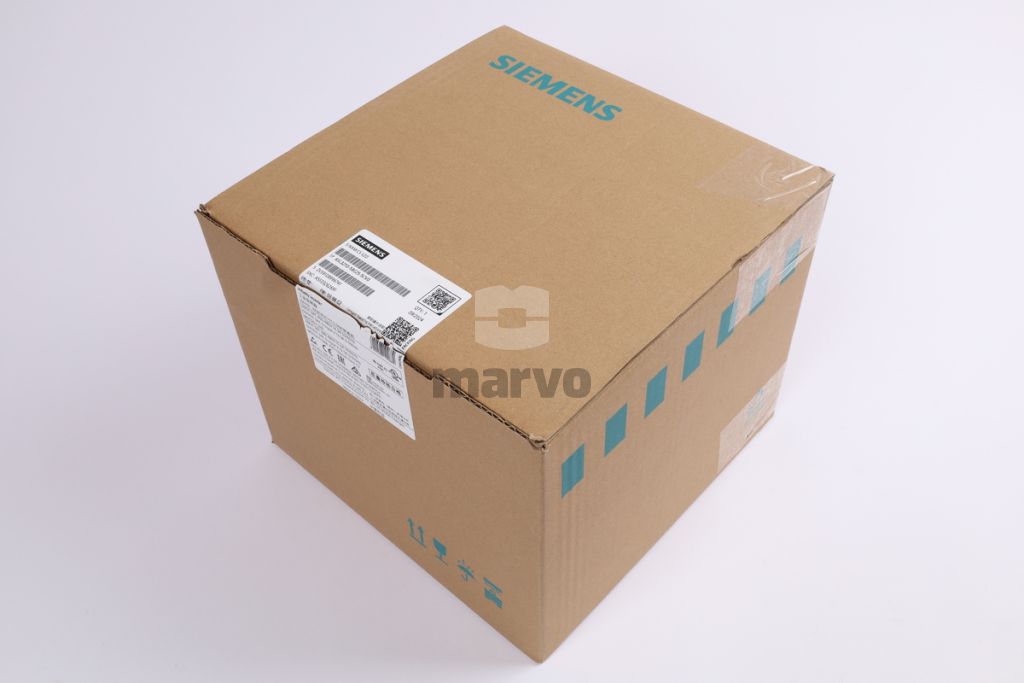

Image shown may not reflect the final product

Siemens 6SL3210-5BE25-5CV0

Name: 6SL3210-5BE25-5CV0
Brand: Siemens
SKU: 6SL3210-5BE25-5CV0
Price: 356.92 GBP
Availability: InStock

Wrong part? Click here

£356.92 (ex. VAT)

3 ready to ship

Don't want it used? Get it NEW

Image shown may not reflect the final product

Marvo Stock ID MV-ASJ3

HS Code 85044090

SKU 6SL3210-5BE25-5CV0

Condition Used

Category General Automation

Warranty 12 months

Weight (kg) 3.00

Length (mm) 480.00

Width (mm) 320.00

Height (mm) 320.00

EAN 6940408102682

Express delivery

Lightning fast delivery if ordered within 00:00:00

Need it urgently?

Call: +44 20 4570 3439

Quoting Marvo Stock ID: MV-ASJ3

Select condition

We're working hard to deliver your orders on time over the holiday period, but please be aware that some lead times may be extended.

Don't want it used? Get it NEW

Returns Hassle-free returns

Thumbs up No hidden fees or duties

Shipping Swift dispatch and delivery

Similar Products

6EP1931-2EC42

£168.95 (ex. VAT)

6FC5147-0AA20-0AA1

£392.93 (ex. VAT)

6GK5116-0BA00-2AA3

£368.14 (ex. VAT)

More about this product

Specification & Description

View now

Commonly Asked Questions

View now

Customer Reviews

View now

Specification & Description

Specification	Description
Part Number	6SL3210-5BE25-5CV0
Alternative Part Number	6SL32105BE255CV0
Manufacturer	Siemens
Category	General Automation
Input Voltage	380 to 480 V ac, -15% / +10%
Input Frequency	47 to 63 Hz
Output Voltage	400V IEC, 480V NEC
Output Power	5.5 kW / 7.50 hp
Output Current (LO)	12.5 A
Output Current (HO)	11 A @ 480 V ac
Pulse Frequency	4.00 kHz
Output Frequency	0 to 550 Hz
Overload Capability (LO)	110% rated output current for 60 s, cycle time 300 s
Overload Capability (HO)	150% rated output current for 60 s, cycle time 300 s
Efficiency	η @ 0.98
Power Factor	λ = 0.72, cos φ > 0.95
Communication	USS, Modbus RTU
Digital Inputs	4 standard digital inputs
Digital Outputs	1 relay changeover contact, 1 transistor
Analogue Inputs	2 (Can be used as additional digital input)
Analogue Outputs	1
Cooling	External fan
Installation Altitude	Up to 1,000 m (3,280.84 ft)
Ambient Temperature	Operation: -10 to 60 °C (14 to 140 °F), Storage: -40 to 70 °C (-40 to 158 °F)
Relative Humidity	Max. 95% non-condensing
Motor Cable Length	Max. 50 m (164 ft) unshielded, 25 m (82 ft) shielded
Mounting Position	Through-hole mounting / wall mounting / side-by-side mounting
Degree of Protection	IP20 / UL open type
Frame Size	FSC
Net Weight	2.60 kg
Dimensions (W x H x D)	184.0 mm x 182.0 mm x 169.0 mm
Compliance with Standards	CE, cULus, C-Tick (RCM), KC
Efficiency Class	IE2 according to IEC61800-9-2 standard

The Siemens 6SL3210-5BE25-5CV0 is a high-performance AC drive designed to enhance the efficiency and versatility of your motor-driven applications. This compact and robust unit is engineered to operate with 3-phase power supply, ranging from 380 to 480 V ac, making it suitable for a wide array of industrial settings across the UK and beyond.

With a rated power of 5.5 kW or 7.50 hp, and a rated current of 12.5 A for low overload (LO) conditions, or 11 A at 480 V ac for high overload (HO) scenarios, this drive is capable of handling demanding tasks with ease. The SINAMICS V20 model boasts an integrated filter class A and offers a pulse frequency of 4.00 kHz, ensuring smooth and precise control of your motors.

Installation and setup are straightforward, thanks to its user-friendly design that supports through-hole mounting, wall mounting, or side-by-side mounting. The device's compact dimensions, with a width of 184.0 mm, height of 182.0 mm, and depth of 169.0 mm, allow for efficient use of space within your control cabinets.

The drive is equipped with a variety of inputs and outputs, including four standard digital inputs, two digital outputs (one of which can be used as an additional digital input), two analog inputs, and one analog output. This flexibility ensures that the drive can be integrated into a wide range of control schemes and adapted to various application requirements.

For communication, the Siemens 6SL3210-5BE25-5CV0 utilises USS and Modbus RTU protocols, providing reliable and straightforward integration into existing automation systems. The drive operates within an ambient temperature range of -10 to 60 °C, making it resilient in diverse working environments.

The SINAMICS V20 series is known for its reliability and cost-effectiveness, making the Siemens 6SL3210-5BE25-5CV0 an excellent choice for those seeking to optimise their motor control applications while maintaining high standards of performance and durability.

Commonly Asked Questions

Is my order covered by a warranty?

Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.

What payment methods do you accept?

We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.

Is Marvo a credible parts supplier?

Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.

Have steps been taken to ensure quality control?

Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.

How do I create an account?

Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.

Peace of mind with every purchase

Dan

‘The ordering was fast and efficient, and everything arrived just as they said it would.’

Milan Kosík

‘Large selection of spare parts, fast delivery.’

Kayden

‘Services is great.’

Nathalie Jolicoeur

‘Great service. Thank you.’

Muswalin

‘Good packing, quickly delivery and responsible.’

Ms. Mia

‘Quick response, good item, delivery on schedule.’

Thomas Roland Geaughan

‘Prompt and expert service. Ease of access to find the parts I needed.’

Milan Kosík

‘Large selection of spare parts, fast delivery.’

Kayden

‘Services is great.’

Muswalin

‘Good packing, quickly delivery and responsible.’

Blažej Knežo

‘Quick response and fast delivery of the product.’

Irene

‘Fast delivery and prompt action.’

Ms. Mia

‘Quick response, good item, delivery on schedule.’

Learn more about Marvo

Our service to you

Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.

No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.

Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.

Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.

Frequently Asked Questions

What are the input and output phase specifications for this AC Drive?

The AC Drive is designed for a three-phase input and output. It operates with a line voltage of 380 to 480 V AC and a line frequency of 47 to 63 Hz.

Can you provide the rated power and current specifications?

Certainly, the rated power for this AC Drive is 5.5 kW or 7.50 hp, and it has a rated current of 12.5 A for Low Overload (LO) and 11 A for High Overload (HO) at 480 V AC.

What is the efficiency rating of this AC Drive?

The AC Drive boasts a high efficiency with an efficiency η of approximately 0.98, ensuring optimal performance with minimal energy loss.

What type of communication protocols does this AC Drive support?

This AC Drive supports USS and Modbus RTU communication protocols, allowing for easy integration with various control systems.

What are the ambient operating conditions for this AC Drive?

The AC Drive can operate within an ambient temperature range of -10 to 60 °C (14 to 140 °F) and can be stored in temperatures ranging from -40 to 70 °C (-40 to 158 °F). It is designed to function at an installation altitude of up to 1000 meters (3281 feet) without derating.

What are the overload capabilities of this AC Drive?

The AC Drive has an overload capability of 110% rated output current for 60 seconds with a cycle time of 300 seconds for Low Overload (LO), and 150% rated output current for 60 seconds with a cycle time of 300 seconds for High Overload (HO).

What is the degree of protection provided by the AC Drive's enclosure?

The enclosure of the AC Drive has a degree of protection rated at IP20, which means it is protected against solid objects larger than 12.5 mm but is not protected against liquids.

What are the dimensions and weight of this AC Drive?

The AC Drive measures 184 mm in width, 182 mm in height, and 169 mm in depth, with a net weight of approximately 2.60 kg.

What mounting positions are available for this AC Drive?

The AC Drive can be mounted through-hole, on a wall, or side-by-side, providing flexibility for various installation requirements.

What are the input and output connection options for this AC Drive?

This AC Drive features a range of connection options including four standard digital inputs, two digital outputs which can be used as additional digital inputs, two analog inputs, and one analog output.
