Specification & Description
| Specification | Description |
|---|---|
| Part Number | 6ES7214-1AE30-0XB0 |
| Alternative Part Number | 6ES72141AE300XB0 |
| Manufacturer | Siemens |
| Category | General Automation |
| Description | This is a Siemens CPU Module, operating at a voltage range of 20.4 to 28.8 V dc, and specifically at 24 V dc with LAD, FBD, SCL. |
| Country of Origin | Not specified |
| Commodity Code | 853710 |
| Engineering with Programming Package | STEP 7 V10.5 or higher |
| Supply Voltage | 24 V DC |
| Permissible Voltage Range | Lower limit at 20.4 V, Upper limit at 28.8 V |
| Load Voltage L+ | Rated value at 24 V |
| Input Current | Maximum current consumption at 1.5 A, 24 V DC |
| Dimensions | Width: 110 mm, Height: 100 mm, Depth: 75 mm |
| Weight | Approximately 415 g |
| Power Loss | Typical power loss at 12 W |
| User Memory | 50 kbyte |
| Integrated Working Memory | 50 kbyte |
| Integrated Load Memory | 2 Mbyte |
| Maximum Expandable Load Memory | 24 Mbyte with SIMATIC Memory Card |
| Buffering | Yes, entire project maintenance-free in the integrated EEPROM |
| CPU Blocks | Number of blocks (total) DBs, FCs, FBs, counters and timers. The maximum number of addressable blocks ranges from 1 to 65535. No restriction, use of the entire working memory |
| CPU Processing Times | Minimum of 0.1 µs for bit operations, 12 µs for word operations, 18 µs for floating point arithmetic |
| Peripheral Address Range | Total of 1024 Byte for inputs / 1024 Byte for outputs |

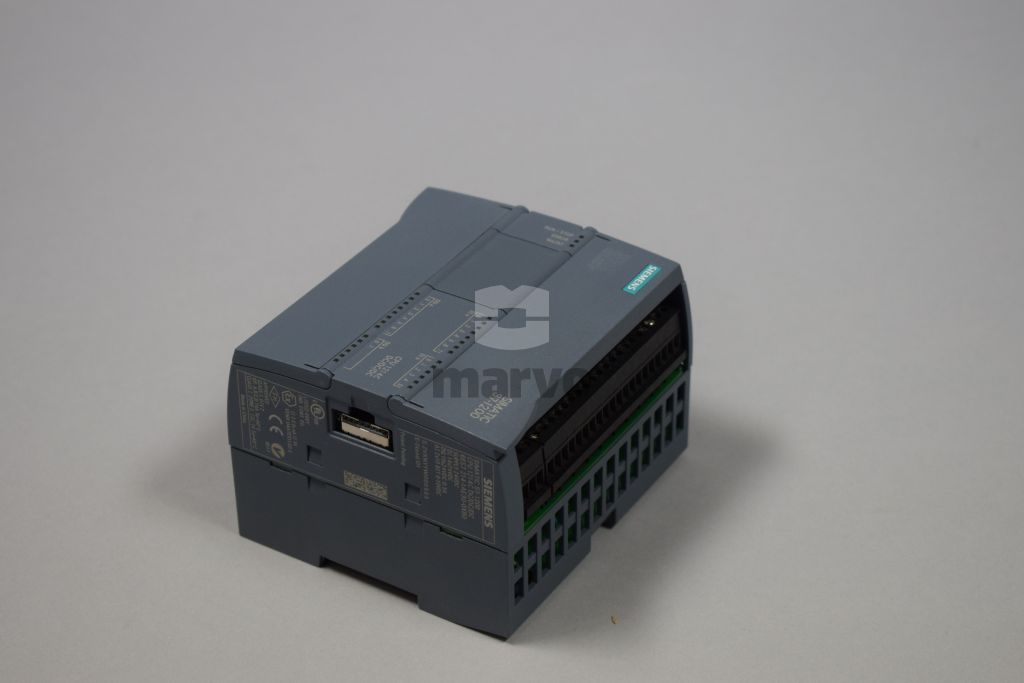

The Siemens 6ES7214-1AE30-0XB0 is a compact CPU module designed for seamless integration into your automation systems. This robust module operates on a DC power supply, ranging from 20.4 to 28.8 V, making it a versatile choice for various industrial applications.
The module comes with an onboard I/O that includes 14 DI 24V DC, 10 DO 24 V DC, and 2 AI 0 - 10V DC. It also boasts a program/data memory of 50 KB, providing ample space for your automation tasks.
The Siemens 6ES7214-1AE30-0XB0 CPU module supports programming with STEP 7 V10.5 or higher, offering flexibility and ease of use. It also features a PROFINET interface for efficient data communication.
This CPU module does not come with an integrated display, ensuring a compact design that can fit into tight spaces. It also supports S7 communication as a server, enhancing its functionality in your automation system.
With its robust design and advanced features, the Siemens 6ES7214-1AE30-0XB0 CPU module is a reliable choice for your automation needs.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Dan
‘The ordering was fast and efficient, and everything arrived just as they said it would.’
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Milan Kosík
‘Large selection of spare parts, fast delivery.’
Kayden
‘Services is great.’
Muswalin
‘Good packing, quickly delivery and responsible.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Irene
‘Fast delivery and prompt action.’
Muswalin
‘Good packing, quickly delivery and responsible.’
Similar Products
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What is the power supply range for this CPU module?
The power supply range for this CPU module is 20.4 to 28.8 V dc.
What programming languages does this CPU module support?
This CPU module supports LAD, FBD, and SCL programming languages.
What is the input current consumption for this module?
The maximum input current consumption for this module is 1.5 A at 24 V DC.
What are the dimensions of this CPU module?
The dimensions of this CPU module are 110 mm in width, 100 mm in height, and 75 mm in depth.
Does this CPU module have an integrated display?
No, this CPU module does not have an integrated display.
What is the weight of this CPU module?
The approximate weight of this CPU module is 415 g.
What is the number of analog inputs in this CPU module?
This CPU module has 2 analog inputs.
What is the number of digital outputs in this CPU module?
This CPU module has 10 digital outputs.
What is the switching capacity of the outputs with resistive load?
The maximum switching capacity of the outputs with resistive load is 0.5 A.
What is the output delay with resistive load?
The maximum output delay with resistive load is 1 µs for '0' to '1' and 5 µs for '1' to '0'.
