Specification & Description
| Specification | Description |
|---|---|
| Part Number | 3RV1011-1DA10 |
| Alternative Part Number | 3RV10111DA10 |
| Manufacturer | Siemens |
| Part Type | Circuit Breaker |
| Number of Poles | 3 |
| Current Rating | 2.2 to 3.2 A |
| Voltage Rating | 690 V |
| Size | S00 |
| Release Class | CLASS 10 A-release |
| N Release | 42 A |
| Country of Origin | Not specified |
| Commodity Code | 85362010 |
| Mechanical Service Life | Typical 100,000 switching cycles |
| Electrical Endurance | Typical 100,000 switching cycles |
| Protection | Finger-safe |
| Installation Altitude | Maximum 2,000 m above sea level |
| Operating Temperature | -20 to +60 °C |
| Relative Humidity | 10 to 95% during operation |
| Ground Fault Detection | No |
| Phase Failure Detection | Yes |
| Dimensions | Height: 90 mm, Width: 45 mm, Depth: 75 mm |
| Required Spacing | For grounded parts at 400 V, 500 V, 690 V: downwards 20 mm, upwards 20 mm, at the side 9 mm |
| Terminal Type | Screw-type terminals for main current circuit |
| Connectable Conductor Cross-Sections | For main contacts: 2x (0,5 ... 1,5 mm²), 2x (0,75 ... 2,5 mm²), 2x (1 ... 4 mm²) |
| Tightening Torque | For main contacts with screw-type terminals: 0.8 ... 1.2 N·m |
| Screwdriver Tip Size | Pozidriv 2 |
| Thread Design of Connection Screw | For main contacts: M3 |

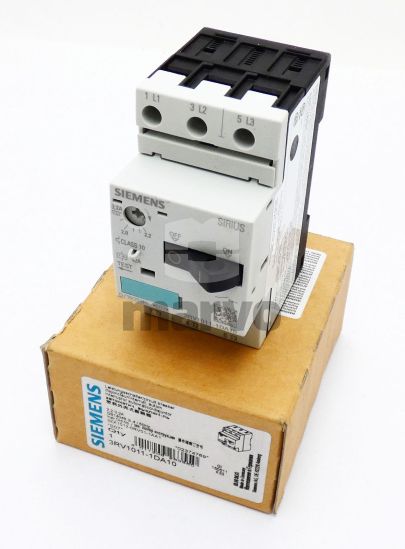

The Siemens 3RV1011-1DA10 is a robust and reliable circuit breaker designed for motor protection. This three-pole device offers an adjustable pick-up value current of the current-dependent overload release from 2.2 to 3.2 A, making it a versatile choice for a variety of applications. With a rated operating voltage of 690 V and a rated operating current of 3.2 A, it ensures efficient performance and safety in your electrical systems.
This circuit breaker is part of the size S00 series and features a Class 10 A-release. It's designed with a high breaking capacity and a mechanical service life of 100,000 switching cycles, ensuring long-lasting durability and reliability.
The Siemens 3RV1011-1DA10 circuit breaker is also equipped with phase failure detection for added safety. It's designed for screw and snap-on mounting onto a 35mm standard mounting rail according to DIN EN 60715, making installation straightforward.
With a height of 90mm, a width of 45mm, and a depth of 75mm, this compact device can easily fit into your existing setup. The circuit breaker is also finger-safe, providing an added layer of protection during operation.
Please note that this product does not come with a removable terminal for auxiliary and control circuits.
In summary, the Siemens 3RV1011-1DA10 circuit breaker is a high-quality, reliable, and efficient solution for motor protection in your electrical systems.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Julien
‘Perfect quick delivery, good service.’
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Martin Juřica
‘Fast offer, short delivery time.’
Milan Kosík
‘Large selection of spare parts, fast delivery.’
Nathalie Jolicoeur
‘Great service. Thank you.’
Ms. Mia
‘Quick response, good item, delivery on schedule.’
Julien
‘Perfect quick delivery, good service.’
Martin Juřica
‘Fast offer, short delivery time.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What is the main function of this circuit breaker?
The Siemens 3RV1011-1DA10 is a circuit breaker designed for motor protection. It has a 3-pole design and an adjustable pick-up value current of the current-dependent overload release of 2.2 to 3.2 A.
What are the key features of this circuit breaker?
This circuit breaker features a 3-pole design, an adjustable pick-up value current of the current-dependent overload release of 2.2 to 3.2 A, and a rated operating voltage of 690 V. It also has a mechanical service life of 100,000 switching cycles.
What are the dimensions of this circuit breaker?
The Siemens 3RV1011-1DA10 circuit breaker has a height of 90 mm, a width of 45 mm, and a depth of 75 mm.
What type of connections does this circuit breaker have?
The Siemens 3RV1011-1DA10 circuit breaker has screw-type terminals for the main current circuit. The arrangement of electrical connectors for the main current circuit is at the top and bottom.
What is the operating frequency of this circuit breaker?
The rated operating frequency of the Siemens 3RV1011-1DA10 circuit breaker is 50 to 60 Hz.
What is the protection class of this circuit breaker?
The Siemens 3RV1011-1DA10 circuit breaker has a protection class IP20 on the front, making it finger-safe.
What is the electrical endurance of this circuit breaker?
The Siemens 3RV1011-1DA10 circuit breaker has an electrical endurance of 100,000 switching cycles.
Does this circuit breaker have any certifications or approvals?
Yes, the Siemens 3RV1011-1DA10 circuit breaker is approved for use in hazardous locations.
What is the operating power of this circuit breaker at different voltages?
The operating power of the Siemens 3RV1011-1DA10 circuit breaker at AC-3 is 550 W at 230 V, 1,100 W at 400 V, 1,500 W at 500 V, and 2,200 W at 690 V.
