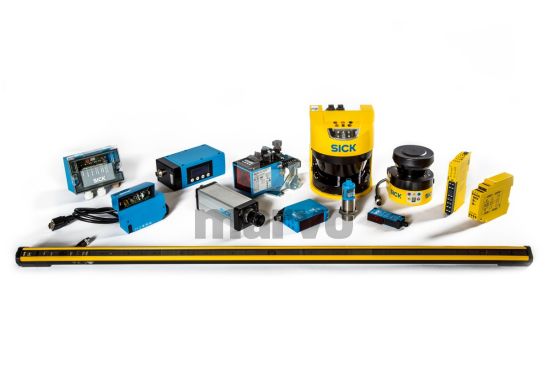

Image shown may not reflect the final product
Check similar products or call us on +44 20 4570 3439 for assistance
3 ready to ship
Image shown may not reflect the final product
Check similar products or call us on +44 20 4570 3439 for assistance
Express delivery
Lightning fast delivery if ordered within 00:00:00
Hassle-free returns
No hidden fees or duties
Swift dispatch and delivery
Specification & Description
| Specification | Description |
|---|---|
| Part Number | YF2A14-100VB3XLEAX |
| Manufacturer | Sick |
| Accessory Group | Plug connectors and cables |
| Accessory Family | Connecting cables |
| Connection Type Head A | Female connector, M12, 4-pin, straight, A-coded |
| Connection Type Head B | Locking plug connector with flying leads and screw connection |
| Connector Material | TPU |
| Connector Colour | Black |
| Locking Nut Material | Zinc die-cast, nickel-plated |
| Seal Material | FKM |
| Tightening Torque | 0.6 Nm |
| Width Across Flats | 13 mm |
| Cable | 10 m, 4-wire, PVC |
| Jacket Material | PVC |
| Jacket Colour | Grey |
| Cable Diameter | 5 mm |
| Conductor Cross Section | 0.34 mm² |
| Shielding | Unshielded |
| Bending Radius | Flexible use > 10 x cable diameter |
| Nominal Voltage, Cable | 300 V AC |
| Test Voltage, Cable | 2,000 V AC |
| Reference Voltage | 250 V AC / 250 V DC |
| Rated Impulse Voltage | 2.5 kV |
| Current Loading | 4A |
| Signal Type | Sensor/actuator cable |
| Compliance | CE, UL |
| UL File Number | E335179 |
| Protection Class | IP65 / IP66K / IP67 |
| Operating Temperature Range | Mobile state: –5 °C to +80 °C, Stationary position: –30 °C to +80 °C, Head: –25 °C to +85 °C |
| Insulation Resistance | 100 MΩ |
| Overvoltage Category | III |
| Mass Resistivity | 30 mΩ |
| Flame Retardancy | In accordance with UL 1581 VW1 / CSA FT1 |
The Sick YF2A14-100VB3XLEAX is a robust and versatile connecting cable designed to facilitate reliable connections in a variety of industrial applications. This high-quality accessory is part of Sick's comprehensive range of plug connectors and cables, ensuring compatibility and optimal performance when paired with sensors and actuators.
Crafted with a durable PVC jacket and featuring an M12 female connector with 4 pins, this straight, A-coded cable is engineered for straightforward installation and secure locking. The unshielded cable measures 10 meters in length and has a conductor cross-section of 0.34 mm², making it suitable for extended runs without compromising signal integrity.
The cable's construction includes a zinc die-cast, nickel-plated locking nut and an FKM seal, which together provide a tightening torque of 0.6 Nm. This ensures a secure and watertight seal, rated at IP65/IP66K/IP67, making the cable resistant to dust, high-pressure water jets, and temporary submersion in water, thus suitable for harsh industrial environments.
With a nominal voltage rating of 300 V AC and a test voltage of 2,000 V AC, the YF2A14-100VB3XLEAX is designed to handle the demanding electrical requirements of modern industrial machinery. Its rated impulse voltage of 2.5 kV and current loading capacity of 4A further attest to its robustness in various operational conditions.
The cable's flexibility is demonstrated by its bending radius, which is more than 10 times its diameter, allowing for installation in tight spaces and dynamic applications where movement may occur. The operating temperature range of -30 °C to +80 °C for fixed installations and -5 °C to +80 °C for flexible applications ensures reliability across a wide range of environmental conditions.
Overall, the Sick YF2A14-100VB3XLEAX connecting cable is a reliable choice for industrial professionals seeking a high-quality, durable solution for their connectivity needs in automation and control systems.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Martin Juřica
‘Fast offer, short delivery time.’
Andreas Boehm
‘Excellent service. The right gear and the right price,well packed and delivered on time.’
Irene
‘Fast delivery and prompt action.’
Muswalin
‘Good packing, quickly delivery and responsible.’
Ms. Mia
‘Quick response, good item, delivery on schedule.’
Milan Kosík
‘Large selection of spare parts, fast delivery.’
Nathalie Jolicoeur
‘Great service. Thank you.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What type of connections does this cable assembly support?
The cable assembly supports a female connector, M12, 4-pin, straight, A-coded on one end and an open wire end on the other, suitable for screw connection.
Can this cable be used in motion applications?
Yes, the cable is designed with a bending radius that allows for use in motion applications, with a minimum bending radius of more than 10 times the cable diameter.
What is the voltage rating for this cable assembly?
The cable assembly has a nominal voltage rating of 300 V AC for fixed installations and a test voltage of 2,000 V AC.
Is the cable shielded?
No, this particular model of cable assembly is unshielded.
What materials are used in the construction of the cable connectors?
The connectors are made from TPU for the plug, with a black colouration, and the locking nut is made from die-cast zinc, nickel-plated. The sealing material is FKM.
What is the current carrying capacity of this cable?
The cable has a current carrying capacity of 4A, making it suitable for sensor/actuator cable applications.
What are the environmental operating temperatures for this cable assembly?
The cable assembly can operate in a dynamic environment from -5°C to +80°C and in a fixed installation from -30°C to +80°C.
What is the cable's conductor size and material?
The cable has a conductor diameter of 5 mm with a cross-sectional area of 0.34 mm², and the material of the cable jacket is PVC.
How is the cable assembly rated for chemical resistance?
The cable assembly is designed to withstand certain chemical environments, but for specific chemical resistance information, it is recommended to consult the product's technical specifications.
What certifications does this cable assembly hold?
The cable assembly is compliant with CE and UL standards, ensuring it meets the necessary regulatory requirements for safety and performance.
