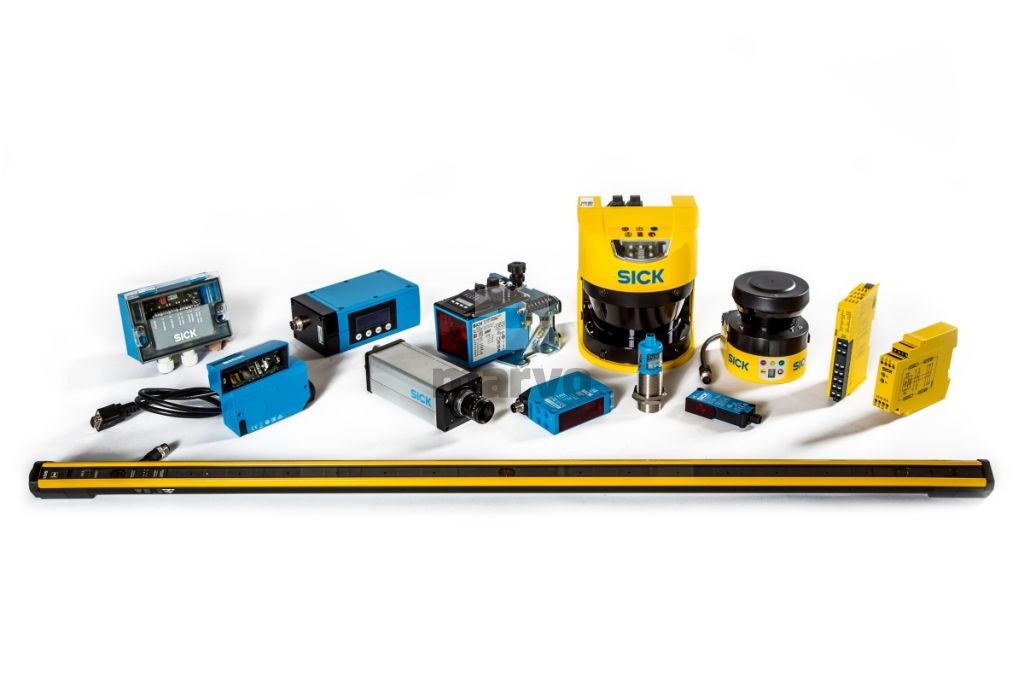

Image shown may not reflect the final product
Check similar products or call us on +44 20 4570 3439 for assistance
Image shown may not reflect the final product
Check similar products or call us on +44 20 4570 3439 for assistance
Express shipping
Lightning fast shipping if ordered within 00:00:00
Hassle-free returns
No hidden fees or duties
Swift dispatch and delivery
Specification & Description
Specification | Description |
---|---|
Part Number | WL100L-F2131 |
Alternative Part Number | WL100LF2131 |
Manufacturer | Sick |
Product Family | W100 Laser |
Type | Miniature photoelectric sensors |
Function Principle | Reflex light barrier with double lens |
Dimensions (W x H x D) | 11 mm x 31 mm x 20 mm |
Housing Shape | Rectangular |
Maximum Sensing Range | 0.08 m to 12 m |
Sensing Range | 0.08 m to 10 m |
Light Type | Visible red light |
Light Source | Laser |
Light Spot Size (Distance) | Ø 12 mm (at 10 m) |
Wavelength | 650 nm |
Laser Class | 1 |
Adjustment | Potentiometer, 270° |
Special Applications | Detection of small objects, high-speed object detection |
Supply Voltage | 10 V DC to 30 V DC |
Ripple | ± 10 % |
Output Current Max | ≤ 100 mA |
Response Time | < 0.25 ms |
Switching Frequency | 2,000 Hz |
Connection Type | Connector M8, 3-pin |
Protection Circuits | Polarity protection, overcurrent and short-circuit protection |
Weight | 10 g |
Housing Material | Plastic, ABS/PC/POM |
Optics Material | Plastic, PMMA |
Protection Rating | IP65 |
Operating Temperature Range | –10 °C to +50 °C |
Storage Temperature Range | –40 °C to +70 °C |
Included Accessories | Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250F |
MTTFD | 416 years |
DCavg | 0% |
eCl@ss | 27270902 |
The Sick WL100L-F2131 is a compact and versatile photoelectric sensor designed for precision detection tasks in a variety of industrial applications. This miniature sensor is part of the W100 Laser series and is renowned for its high-quality performance in detecting small objects and high-speed operations.
With its small dimensions of 11 mm x 31 mm x 20 mm, the WL100L-F2131 is an ideal solution for installations where space is at a premium. Despite its miniature size, it offers a reliable sensing range of 0.08 m to 12 m, ensuring flexibility across different operational distances.
The sensor utilises visible red light with a wavelength of 650 nm, and the light source is a Class 1 laser, which is safe for normal operation while providing a focused detection beam. The light spot size at a distance of 10 m is a mere Ø 12 mm, allowing for precise detection of small objects.
This model features a PNP switching output and offers the option to select between light-on and dark-on modes via an easily accessible rotary switch. It has a fast response time of less than 0.25 ms and a high switching frequency of 2000 Hz, making it suitable for high-speed applications.
The WL100L-F2131 is built with a robust plastic housing made of ABS/PC/POM and has an IP65 rating, signifying a high level of protection against dust and water jets, which is essential for demanding industrial environments.
Installation and alignment are straightforward, thanks to the inclusion of a stainless steel mounting bracket and a reflector. The sensor also features a potentiometer for precise adjustment, ensuring optimal performance in your specific application.
Overall, the Sick WL100L-F2131 photoelectric sensor is a reliable and efficient choice for businesses looking to enhance their automation processes with accurate and responsive object detection.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Anna
‘I can recommend quick, efficient, and professional.’
Dan
‘The ordering was fast and efficient, and everything arrived just as they said it would.’
Andreas Boehm
‘Excellent service. The right gear and the right price,well packed and delivered on time.’
Kayden
‘Services is great.’
Muswalin
‘Good packing, quickly delivery and responsible.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Anna
‘I can recommend quick, efficient, and professional.’
Dan
‘The ordering was fast and efficient, and everything arrived just as they said it would.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Similar Products
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What are the key features of this miniature photoelectric sensor?
The key features include a visible red laser light source, a sensing range of up to 12 meters with a reflector, PNP output, and quick response times suitable for high-speed object detection. It also has a compact design with a robust housing, making it ideal for tight spaces and demanding environments.
Can the sensor be used in outdoor applications?
While the sensor has an IP65 rating, making it dust-tight and protected against water jets, it is primarily designed for indoor use. Outdoor applications may require additional protective measures to ensure longevity and reliability.
How do I adjust the sensing range of the sensor?
The sensing range can be adjusted using the 270° potentiometer located on the sensor. This allows for precise tuning to meet the specific needs of your application.
What type of output does the sensor provide?
The sensor provides a PNP output, which is a commonly used configuration in industrial automation for interfacing with various types of control systems.
What is the response time of the sensor?
The sensor boasts a rapid response time of less than 0.25 milliseconds, making it suitable for applications where quick detection is critical.
What materials are used in the construction of the sensor?
The sensor's housing is made of durable plastic materials such as ABS/PC/POM, and the optics are constructed from PMMA, ensuring a robust design for industrial environments.
Is there any special consideration for the laser used in the sensor?
Yes, the sensor uses a Class 1 laser, which is considered safe under all conditions of normal use. This means the laser does not pose a hazard to eyesight.
How can I ensure the sensor is correctly aligned for optimal performance?
Proper alignment can be achieved by using the mounting brackets and reflectors recommended by the manufacturer, and by adjusting the sensor's potentiometer to fine-tune its sensitivity.
What environmental conditions can the sensor operate in?
The sensor is designed to operate in a temperature range of –10 °C to +50 °C, making it suitable for a variety of industrial environments.
What certifications does the sensor have?
The sensor is certified with various eCl@ss standards, ensuring compliance with international industry standards for electronic classification.
