Schneider REG96PUNL1RHU

Wrong part? Click here

£195.18 (ex. VAT)

Learn more about our conditions.
Payment icons
REG96PUNL1RHU

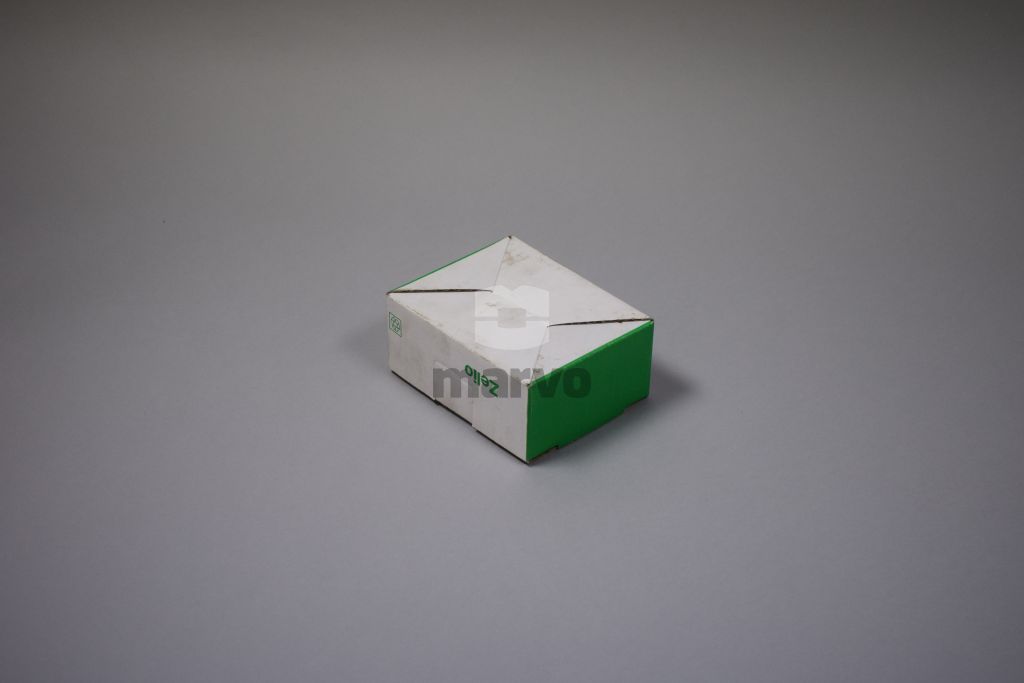

Image shown may not reflect the final product

Marvo Stock ID MV-40NG
HS Code 903289
SKU REG96PUNL1RHU
Condition New sealed
Warranty 12 months

Express delivery

Lightning fast delivery if ordered within 00:00:00

Need it urgently?

Call: +44 20 4570 3439

Quoting Marvo Stock ID: MV-40NG

More about this product

Chevron

Specification & Description

View now
Chevron

Commonly Asked Questions

View now
Chevron

Customer Reviews

View now
Chevron

Similar Products

View now

Specification & Description

Specification Description
Part Number REG96PUNL1RHU
Manufacturer Schneider
Product Range Zelio Control
Component Type Modular measurement and control relays
Relay Type Temperature control relays
Application HVAC, Heating or cooling, Industrial machines, Packaging
Dimensions 96 x 48 mm (1/8 DIN)
Analogue Input Types Temperature probe Pt 100, Thermocouple J, K, R, B, S, T, E, N, PLII, Current 4...20 mA, Voltage 1...5 V, Current 0...20 mA, Voltage 0...0.1 V, Voltage 0...10 V, Voltage 0...5 V, Voltage 2...10 V
Rated Supply Voltage 100...240 V AC
Supply Voltage Limits 85…264 V
Measurement Accuracy 0.3 % full scale
Sampling Duration 200 ms
Number of Outputs 1 relay NO
Output Type Relay 220 V AC 3 A
Alarm Output 3 C/O
Power Consumption 12 VA at 100...240 V AC
Functions Available Fuzzy logic, Auto tuning, PID, Hysteresis on-off, Manual operation, Soft start, Ramp 16 steps
Operating Position Any position
Display Type 7 segments LCD
Display Digits 4
Signalling Function Setpoint value indicator (SV) LED Green, Process output 1 active (C1) LED Red, Process output 2 active (C2) LED Red, Process value indicator (PV) LED Red, Process value LCD display, Setpoint value LCD display, Alarm output 1 active (D01) LED, Alarm output 2 active (D02) LED, Alarm output 3 active (D03) LED
Mounting Support Panel
Standards EN 61326-1, CSA C22.2 No 24-93, EN 61010-1
Product Certifications CURus (873), GOST
Ambient Air Temperature For operation: -10…50 °C, For storage: -20…60 °C
Relative Humidity 90 % without condensation
Operating Altitude Up to 2000 m
Storage Altitude Up to 3000 m
Vibration Resistance 1 gn at 10…70 Hz (IEC 60068-2-6)
Shock Resistance 5 gn (IEC 60068-2-27)
IP Degree of Protection IP66 front face, IP20 rear (IEC 60529)
NEMA Degree of Protection NEMA 4X front face

The Schneider REG96PUNL1RHU is a sophisticated temperature control relay designed to offer precise monitoring and regulation of temperature in a variety of applications. With its compact dimensions of 96 x 48 mm, conforming to the 1/8 DIN standard, this modular measurement and control relay is an ideal choice for integration into HVAC systems, industrial machines, and packaging operations.

This unit is equipped to handle a wide range of analogue input types, including temperature probes like Pt 100 and various thermocouples (J, K, R, B, S, T, E, N, PLII), as well as current and voltage signals. It operates on a rated supply voltage of 100 to 240 V AC, with supply voltage limits of 85 to 264 V, ensuring flexibility and reliability in diverse working conditions.

The REG96PUNL1RHU boasts a measurement accuracy of 0.3% full scale and a quick sampling duration of 200 ms, which allows for responsive and accurate temperature control. The relay output is rated at 220 V AC, 3 A, and it features three configurable alarm outputs for comprehensive monitoring.

Users will appreciate the intuitive interface, which includes a 7-segment LCD display and multiple LED indicators for clear and immediate feedback on the process and setpoint values. The relay also offers advanced functions such as fuzzy logic, auto-tuning, PID control, manual operation, soft start, and a ramp function with 16 steps, providing a high degree of control over the temperature regulation process.

Mounting is made simple with the included bracket, and the device can be positioned in any orientation to suit various installation requirements. The front face of the relay is protected to IP66 standards, and the rear to IP20, ensuring durability in challenging environments.

The Schneider REG96PUNL1RHU is a robust and versatile temperature control solution that delivers precision and ease of use for professionals seeking to maintain optimal temperature conditions in their processes.

Commonly Asked Questions

Is my order covered by a warranty?

Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.

Read more...

What payment methods do you accept?

We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.

Read more...

Is Marvo a credible parts supplier?

Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.

Read more...

Have steps been taken to ensure quality control?

Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.

Read more...

How do I create an account?

Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.

Read more...

Peace of mind with every purchase

Stars Andreas Boehm

‘Excellent service. The right gear and the right price,well packed and delivered on time.’

Stars Muswalin

‘Good packing, quickly delivery and responsible.’

Stars Ms. Mia

‘Quick response, good item, delivery on schedule.’

Learn more about Marvo


Our service to you

Stopwatch

Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.

Shield

No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.

Checkmark

Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.

Stars

Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.

Frequently Asked Questions

What is the function of this temperature control relay?

The Schneider REG96PUNL1RHU is a modular measurement and control relay designed for temperature control applications. It can be used in systems requiring precise temperature regulation such as HVAC, industrial machines, and packaging equipment.

What types of inputs does this temperature control relay support?

It supports a variety of analogue input types including temperature probes like Pt 100, thermocouples (J, K, R, B, S, T, E, N, PLII), and voltage or current signals within specified ranges.

Can this relay be mounted in any position?

Yes, the REG96PUNL1RHU can be mounted in any position, offering flexibility in installation.

What are the dimensions of this relay?

The relay has outer dimensions of 96 x 48 mm, conforming to the 1/8 DIN standard size for panel mounting.

What is the rated supply voltage for this relay?

The rated supply voltage for the REG96PUNL1RHU is 100 to 240 V AC.

What type of display does this relay have?

It features a 7-segment LCD display that shows process values and setpoint values, along with LED indicators for various functions.

What is the measurement accuracy of this relay?

The temperature control relay boasts a measurement accuracy of 0.3% full scale.

Does this relay have any special features for temperature control?

Yes, it includes features such as fuzzy logic, auto-tuning, PID control, hysteresis on-off, manual operation, soft start, and a ramp function with 16 steps.

What is the power consumption of this relay?

The power consumption is 12 VA at a supply voltage of 100 to 240 V AC.

What environmental conditions is this relay suitable for?

The REG96PUNL1RHU is suitable for operation in ambient air temperatures ranging from -10 to 50 °C and can be stored in temperatures from -20 to 60 °C. It also has a relative humidity tolerance of 90% without condensation.
