Specification & Description
| Specification | Description |
|---|---|
| Part Number | ATV930U40N4 |
| Manufacturer | Telemecanique |
| Product Type | Variable Speed Drive |
| Application | Industrial use for controlling synchronous and asynchronous motors |
| Power Supply Voltage | Three-phase, 380 to 480 V |
| Continuous Output Current | 9.3 A at 4 kHz for normal duty, 7.2 A at 4 kHz for heavy duty |
| Motor Power Capacity | 4 kW for normal duty, 3 kW for heavy duty |
| Motor Power in Horsepower | 5 hp for normal duty |
| EMC Filter | Integrated with EMC plate option |
| Degree of Protection | IP21 |
| Mounting Mode | Wall mount |
| Communication Protocols | Modbus serial, Modbus TCP, Ethernet/IP |
| Option Modules | Slots for communication and I/O extension modules |
| Dimensions | 350 mm height x 144 mm width x 206 mm depth |
| Net Weight | 4.6 kg |
| Electrical Connection | Control: screw terminal 0.5...1.5 mm², Power: screw terminal 2.5...6 mm² |
| Transmission Rate | 10/100 Mbit/s for Ethernet IP/Modbus TCP, 4.8 to 38.4 kbit/s for Modbus serial |
| Local Signalling | Multiple LED indicators for diagnostics and communication status |
| Input Compatibility | Discrete input level 1 PLC conforming to EN/IEC 61131-2 |
| Discrete Input Logic | Positive logic (source), Negative logic (sink) |
| Sampling Duration | Varies for discrete input, pulse input, analog input, and analog output |
| Accuracy | +/- 0.6% for analog input, +/- 1% for analog output at temperature variation of 60 °C |
| Refresh Time | 5 ms for relay output |
| Isolation | Between power and control terminals |
| Environmental Class | Class 3C3 and 3S3 according to IEC 60721-3-3 |
| Operating Altitude | Up to 1000 m without derating, derating above 1000 m |
| Operating Temperature | -15 to 50 °C without derating, derating above 50 °C |
| Assembly Style | Enclosed |
| Electromagnetic Compatibility | Complies with multiple IEC standards for immunity and emissions |

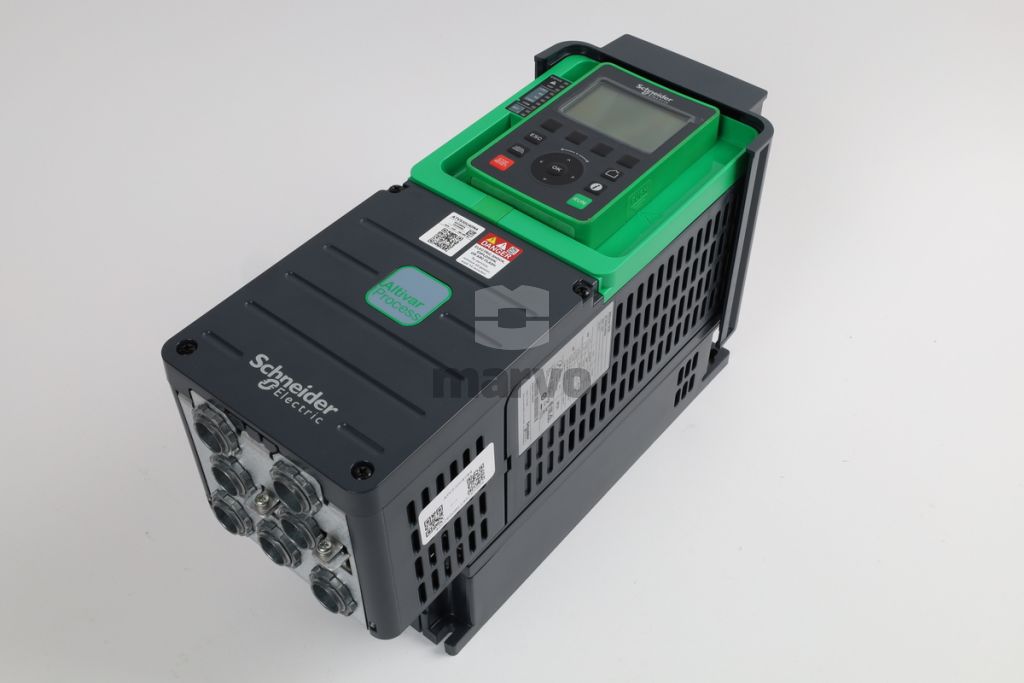

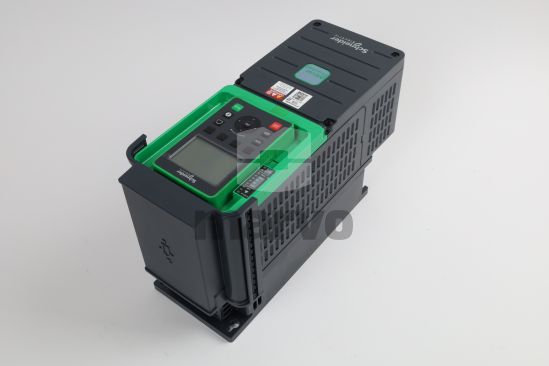

The Telemecanique ATV930U40N4 is a high-performance variable speed drive designed to optimise process control and energy management in industrial applications. This robust unit is engineered to operate with both synchronous and asynchronous motors, offering a versatile solution for a wide range of demanding environments.
With a power rating of 4 kW and compatibility with three-phase 380 to 480 V power supplies, the ATV930U40N4 is well-suited for normal to heavy-duty operations. It features an integrated EMC filter, ensuring compliance with EN/IEC 61800-3 standards for electromagnetic compatibility, and boasts an IP21 degree of protection, conforming to IEC 61800-5-1 and IEC 60529, which safeguards the unit against ingress of solid objects and dripping water.
The drive is equipped with advanced communication capabilities, including Modbus serial, Modbus TCP, and EtherNet/IP protocols, facilitating seamless integration into existing networks and automation systems. The unit also offers a range of option modules for expanded functionality, such as Profibus DP V1, PROFINET, DeviceNet, EtherCAT, and CANopen, among others.
Operators can benefit from the drive's intuitive local signalling through LEDs that provide diagnostics, communication status, and voltage presence, ensuring quick and easy monitoring of the drive's operation. The ATV930U40N4 also features a range of protective functions, including thermal protection for both the motor and drive, safe torque off, overcurrent protection, and more, to ensure reliable performance and longevity of the system.
Designed with sustainability in mind, the Telemecanique ATV930U40N4 is a Green Premium product, indicating a commitment to environmental considerations throughout the product's lifecycle. It is mercury-free and adheres to the latest EU RoHS and REACh regulations, ensuring that it meets the highest standards for environmental safety and sustainability.
Overall, the Telemecanique ATV930U40N4 variable speed drive is a sophisticated solution that offers precise control, energy efficiency, and reliability for industrial applications where performance and sustainability are paramount.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Martin Ruml
‘Rapid delivery.’
Blažej Knežo
‘Quick response and fast delivery of the product.’
Andreas Boehm
‘Excellent service. The right gear and the right price,well packed and delivered on time.’
Muswalin
‘Good packing, quickly delivery and responsible.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Martin Juřica
‘Fast offer, short delivery time.’
Milan Kosík
‘Large selection of spare parts, fast delivery.’
Irene
‘Fast delivery and prompt action.’
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What type of applications is this variable speed drive suitable for?
The Telemecanique variable speed drive is designed for industrial applications, particularly where process control and energy management are crucial. It's suitable for use with synchronous and asynchronous motors, making it versatile for various industrial automation systems.
Can this drive be used with both single-phase and three-phase power supplies?
This variable speed drive is specifically designed for three-phase power supplies, ranging from 380 to 480 V. It is not suitable for single-phase power supplies.
What are the dimensions and weight of this variable speed drive?
The dimensions of the Telemecanique variable speed drive are 350 x 144 x 206 mm, and it weighs approximately 4.6 kg, making it compact and suitable for various installation environments.
Does this drive come with an EMC filter?
Yes, the drive includes an integrated EMC filter, conforming to EN/IEC 61800-3 category C3, which helps in reducing electromagnetic interference in industrial environments.
What is the IP rating of this variable speed drive?
The variable speed drive has an IP21 rating, indicating that it has protection against solid objects larger than 12 mm and dripping water when tilted up to 15 degrees from its normal position.
What safety functions does this drive support?
The drive supports several safety functions, including Safe Torque Off (STO) which is compliant with SIL 3 safety levels, providing a reliable method to ensure motor and drive safety during operation.
Is there a braking unit included with this drive?
Yes, the Telemecanique variable speed drive comes with an integrated braking unit, which is beneficial for applications requiring quick deceleration and precise speed control.
What type of cooling does this variable speed drive utilise?
The drive utilises forced convection cooling, which is an effective method to manage the temperature and ensure reliable operation in various industrial settings.
Can I connect this drive to a network?
Yes, the drive is equipped with communication ports supporting protocols such as Modbus serial, Modbus TCP, and EtherNet/IP, allowing for easy integration into networked industrial systems.
What is the maximum output frequency of this drive?
The maximum output frequency of the drive is 599 Hz, providing a wide range of speed control to meet the demands of different applications.
