Specification & Description
| Specification | Description |
|---|---|
| Part Number | ABE-7H16R11 |
| Alternative Part Number | ABE7H16R11 |
| Manufacturer | Schneider |
| Input Channels | 16 |
| Input Current | ≤1.8 mA |
| Output Current | ≤1.8 mA |
| Supply Voltage | 30 V dc |
| Type | Discrete I/O Module |
| Dimensions | Compact design for space-saving installation |
| Connection Type | Pre-wired interface system for parallel connection |
| Compatibility | Compatible with various PLCs with high-density I/O cards |
| Mounting | Standard 35mm DIN rail mounting |
| LED Indicators | For easy diagnostics and status indication |
| Safety Features | Includes isolation switch and fuse protection for enhanced safety and easier maintenance |
| Additional Functionality | Test points for convenient troubleshooting; large marking area for circuit identification |

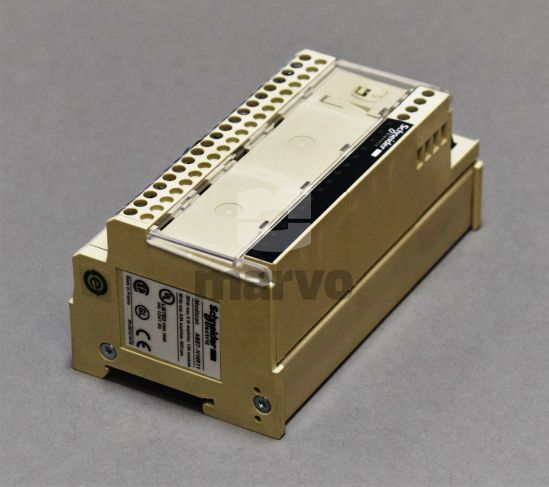

The Schneider ABE-7H16R11 is a discrete I/O module designed to facilitate efficient and reliable interfacing between PLC systems and various input devices. This module boasts 16 inputs, each capable of handling a voltage up to 30 V dc, with a minimal current draw of ≤1.8 mA. Its compact form factor ensures it can be integrated into space-constrained environments while maintaining ease of installation and maintenance.
Crafted for durability and consistent performance, the ABE-7H16R11 is a testament to Schneider's commitment to quality in automation technology. It is particularly suited for applications requiring a high density of input signals to be processed, such as in manufacturing, processing, and other industrial settings where precision and reliability are paramount.
The module's design prioritises ease of use, with features that simplify the wiring process and enhance the clarity of connections. Users benefit from a streamlined setup that can significantly reduce installation time and potential for error. The ABE-7H16R11 is an ideal choice for professionals seeking a robust I/O solution that combines functionality with practicality, ensuring seamless integration into their control systems.
Commonly Asked Questions
Is my order covered by a warranty?
Marvo provides a full 12-month warranty on all products, whatever the condition. For your peace of mind, all parts are ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. If you are unhappy with the part(s) you received and would like to request a return, you can do so by completing our quick and easy online form. Once we have received your Returns Request, a member of the team will be in touch to discuss this further with you. You can read more about our warranty policy here.
Read more...What payment methods do you accept?
We accept card payments from all major credit, debit and Mastercard providers including Visa, American Express, Western Union, Paypal and bank transfers. Before you complete an order you will be prompted to input your payment details, at which point you can enter the relevant card information you wish to use for your transaction. If you are experiencing issues with your payment method then you can contact our team via email here. From there, you will be directed to the most relevant resource or person to help you complete your payment, get your order processed and ensure that your parts are on the way to your delivery address.
Read more...Is Marvo a credible parts supplier?
Marvo is a highly credible supplier of industrial automation parts and components with dedicated hubs around the world offering industry-leading products and services. Marvo is committed to providing a quick, easy and reliable place to source your automation and control components. All purchases come as standard with a comprehensive 12-month return to base warranty meaning that, in just a few clicks, you can source critical parts more seamlessly than ever before. Click here to read an article on how Marvo is redefining convenience for automation and manufacturing professionals.
Read more...Have steps been taken to ensure quality control?
Marvo takes pride in product quality and has put several measures in place to assure high levels of quality standards. For your peace of mind, all parts have been ‘Marvo Approved’ which means that they have been tested and checked to ensure that they are in working condition. Redefine convenience and secure priority delivery on all parts along with a comprehensive 12-month warranty. This is the smart new way to buy automation and control components.
Read more...How do I create an account?
Creating an account is incredibly simple and takes a matter of seconds. You can create a Marvo account at any time by clicking here and following the simple steps on screen. By creating a Marvo account you can store your contact details, delivery addresses, billing addresses and more, meaning that you can enjoy game-changing convenience faster than ever before.
Read more...Peace of mind with every purchase
Anna
‘I can recommend quick, efficient, and professional.’
Thomas Roland Geaughan
‘Prompt and expert service. Ease of access to find the parts I needed.’
Martin Juřica
‘Fast offer, short delivery time.’
Kayden
‘Services is great.’
Nathalie Jolicoeur
‘Great service. Thank you.’
Advance Lifts
‘Great customer service , we needed some assistance quickly and received it.’
Martin Ruml
‘Rapid delivery.’
Blažej Knežo
‘Quick response and fast delivery of the product.’
Milan Kosík
‘Large selection of spare parts, fast delivery.’
Similar Products
Our service to you
Lightning-Fast Express Shipping: Receive your order in record time with our express shipping options, ensuring you minimize downtime and keep your projects on track.
No-Risk Returns, Guaranteed: Return your parts anytime for a full refund. Our hassle-free return policy ensures you’re never stuck with something you don’t need.
Clear Pricing with No Hidden Fees: What you see is what you pay, transparent pricing with no extra costs, ever. Rest assured, all taxes and fees are already included in your final price.
Rock-Solid Reliability at a Fraction of the Cost: Get pre-owned electronic parts that are fully tested for peak performance, saving you money without compromising on quality, backed by a comprehensive warranty.
Frequently Asked Questions
What type of module is this?
This is a discrete I/O module designed for interfacing with various input devices, providing a reliable solution for expanding the input capabilities of a control system.
How many input channels does the module support?
The module supports 16 input channels, allowing for multiple devices to be connected and monitored simultaneously.
What is the current consumption of each input?
Each input on the module consumes less than or equal to 1.8 mA.
What voltage does the module operate at?
The module operates at a voltage of 30 V dc, suitable for a wide range of industrial applications.
Can this module be used with two-wire sensors?
Yes, the module can be used with two-wire sensors when connected to compatible PLCs, such as the TSX Micro and Premium PLCs.
Is there any LED indication available on the module?
Yes, the module includes LED indicators for each channel to provide visual confirmation of the input status, which aids in troubleshooting and monitoring.
What type of connectors does the module use?
The module utilises a 20-way HE10 connector for efficient and error-free wiring between the PLC and the module.
How is the module mounted in an enclosure?
The module is designed to mount on a standard 35mm DIN rail, which simplifies installation and allows for easy integration into control panels.
Does the module offer any protective features?
Yes, the module includes fuse protection for each channel to safeguard against overcurrent conditions, enhancing the safety and longevity of the system.
What is the purpose of the isolation switch on the module?
The isolation switch allows for selective opening and isolation of inputs and outputs, which provides added flexibility during maintenance and testing.
